CY5L-30 Husk Burner 300000 Kcal/Hour 3.12KW Husk Furnace Dryer

  • 1
  • 2

Brand Name : ChenYu Technology

Model Number : 5L-50

Certification : ISO9001, ISO14001, CE, Different Kinds of Chinese National Certificates

Place of Origin : Lu'An China

MOQ : 1 Set

Delivery Time : 30 Working Days

Packaging Details : Wooden Case

Voltage : Three Phase 380V, Single Phase 220V/50HZ (or Customized)

Power : 3.12 KW

Weight : 4232 KG

Heating Model : Indirect Hot Air Heating, Automatic Temperature Controlling

Rated Heat : 500,000 Kcal

Warranty : 12 Months

Fuel : Husk

Applicable Industries : Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Food Shop, Energy & Mining, Food & Beverage Shops

Contact Now

CY5L-30 Classic Husk Burner With 300 000 Kcal For Heat Supplying Husk As The Fuel

Drying perfect, Saving efficient
~15years focus on the grain dryer and husk burner !
~10000+customers all over the world are satisfied !
~ Leading the sales for 10 consecutive years!

CY5L-30 Husk Burner 300000 Kcal/Hour 3.12KW Husk Furnace Dryer
Our Husk burner

Production Information:

1. Multi biomass fuels for choice, energy saving and environment friendly.
2. Automatic feeding/ ash removal/ cyclone for choice.
3. Indirect hot air heating, no pollution.
4. Automatic temperature controlling, temperature difference:±1℃.

Our Key Parameters:

ModelCY5L-30
Rated Heat (Kcal/Hour)300,000
Hot Air Temperature (℃)60-120
Heating ModeIndirect Hot Air Heating, Automatical Temperature Controlling
Ignition ModeBy Man
Feeding ModeManual/ Automatic (if use chaff, optional)
Ash Removal ModeManual/ Automatic (Optional)
Exhaust Fan Mode4-72-3.2A
Hot Air Output (m³/Hour)26706
Applicable Combustion MaterialsRice Hull, Firewood, Straw, Anthracite
Thermal Efficiency (%)≧60 (if rice hull burning)
Total Weight (KG)3154
Dimension (L x W x H mm)3860x1400x3135
Power3.12
Equipped Dryers Model and Qty5HCY-15H 2 Sets
Safe DeviceThermo-over Relay, Automatic Constant Temperature Device, Hot Air Temperature Sensor, Overheat Protectine Device, Leakage Protection Device, Automatic Synchronization of Smoke Emission, Air Supply and Temperature Control


1. Thermal energy, husk consumption and exhausted ash production listed above are for reference only,
actual data will differ from variety, moisture content and impurity rate.
2. Specification subject to change without notice.

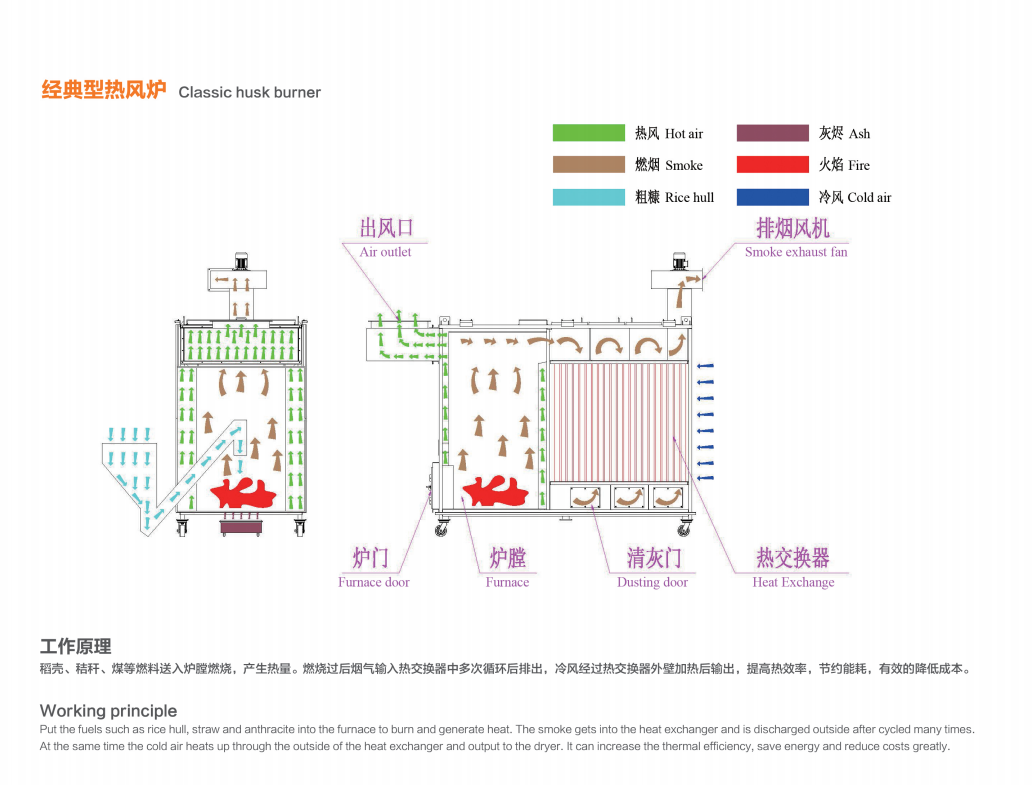

Our Husk Operation process
